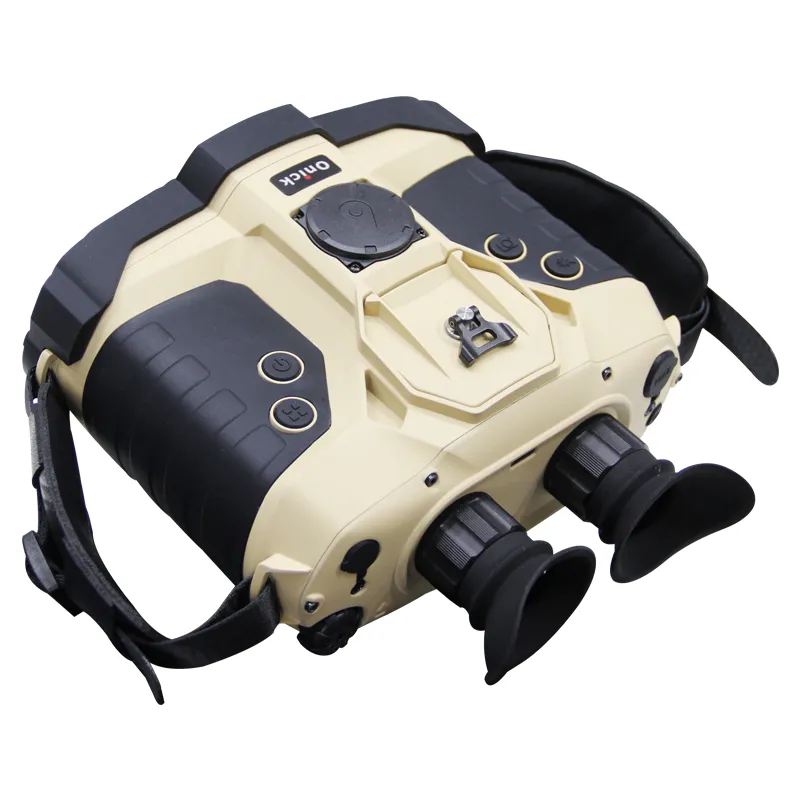

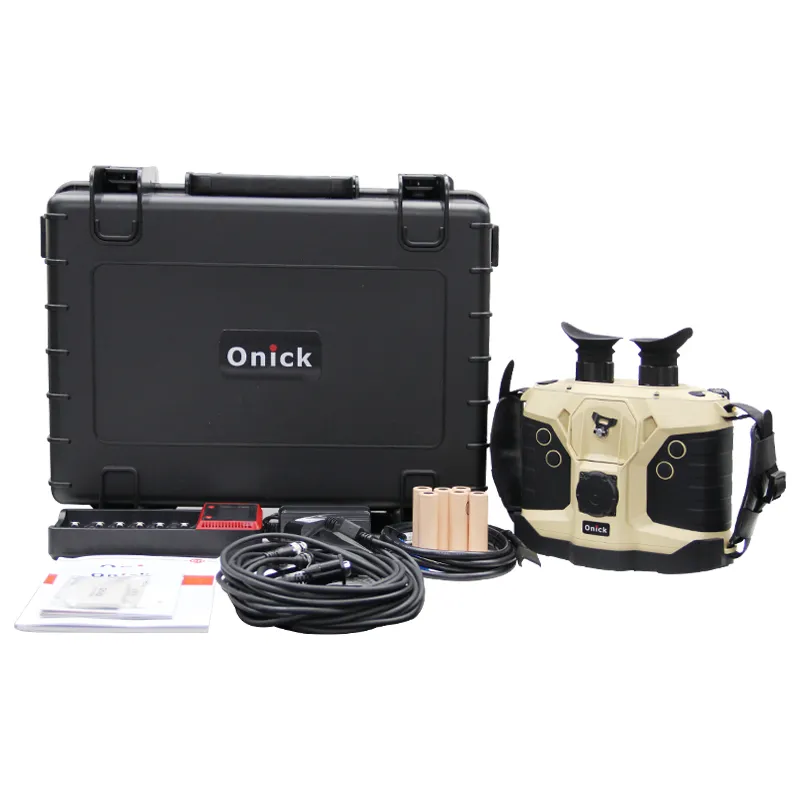

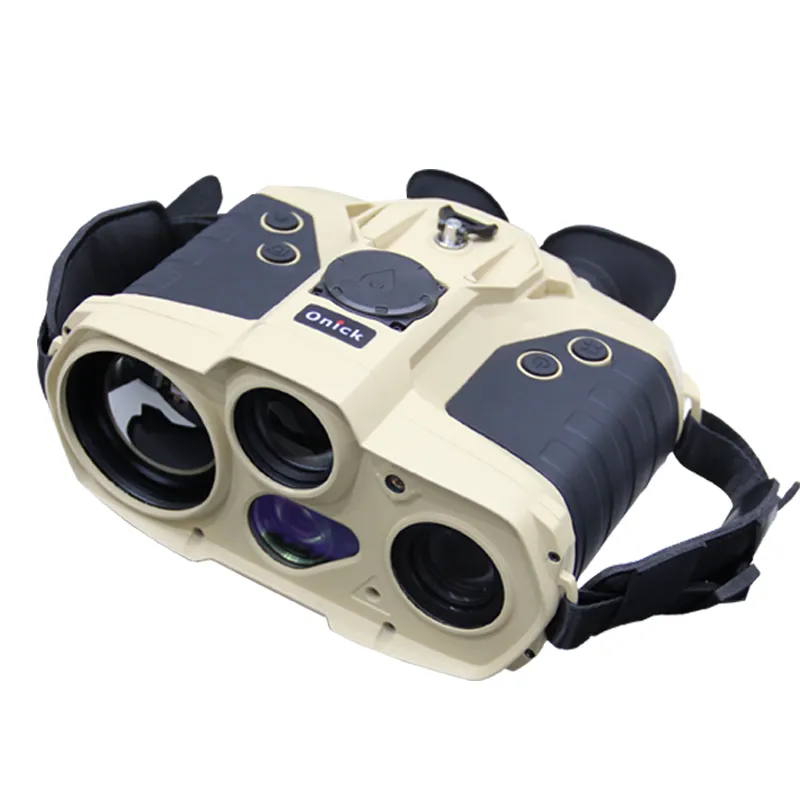

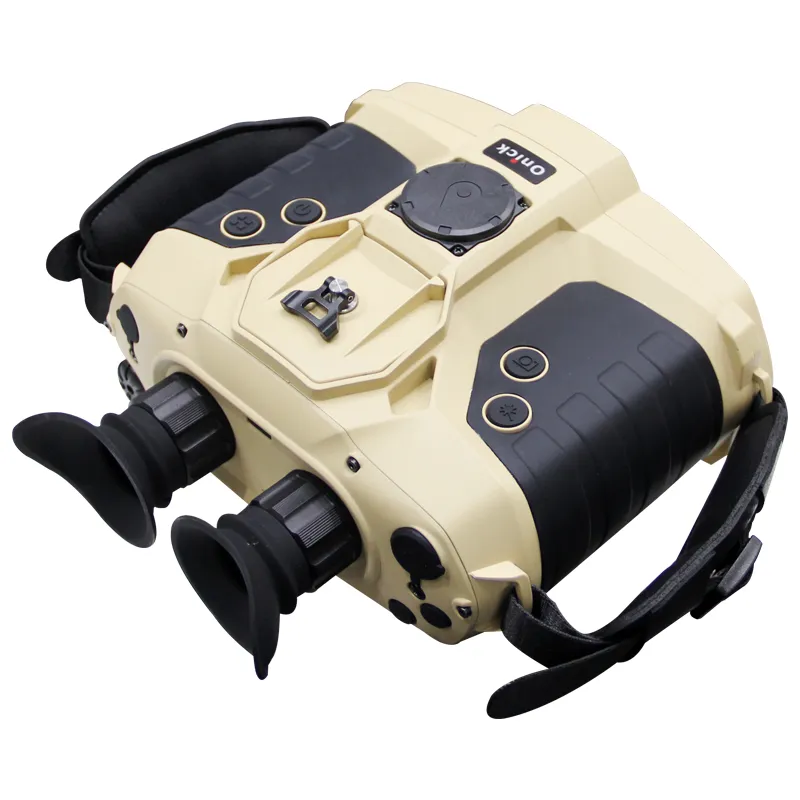

Onick RE830 binocular multi-function handheld observation instrument is a small intelligent observation device integrating infrared, low light, visible light and laser. It has built-in positioning module, electronic compass, laser ranging and image storage functions, and image fusion function. It can be used for day and night observation and target search, and timely take photos and videos and upload information. It is comfortable to use and easy to carry. It can be used for reconnaissance, surveillance, outdoor hunting and security protection.
Product Features:
1. 5 optical channels, support image fusion, infrared, low light, visible light and other observation modes;
2. Multi-function, intelligent, with electronic compass; with laser ranging, accurate measurement of target position;
3. Built-in positioning module BD+GPS dual-mode positioning;
4. Light weight, long battery life, simple operation;
Application areas:
It can record and take photos, record and restore the scene, and can be used in patrol, law enforcement, search and rescue, drug and smuggling, prisoner pursuit and other scenes. It is suitable for special forces such as public security, armed police, and the army to achieve effective all-weather observation of specific areas or targets, and quickly discover, identify and track targets of concern; it is also suitable for fire protection, electricity, petroleum and other industries to achieve day and night monitoring of specific areas or equipment.
RE830 binocular multi-function handheld observation instrument positioning module, electronic compass, laser distance measurement
|
Image zoom
|
Electronic zoom:
|
1.0-4.0 times (infrared, low light, fusion change synchronously, single step adjustment step 0.1 times. Visible light image is electronically zoomed separately, zoom step 0.1 times)
|
Infrared thermal imaging performance
|
Resolution
|
640×512, 12μm
|
Working band
|
8~14μm
|
Field of view
|
6.1°×4.8°
|
Low light imaging performance
|
Resolution
|
750×600
|
Low illumination capability
|
0.001lux
|
Field of view
|
6.8°×5.5°
|
Visible light imaging performance
|
Resolution
|
4.6 million pixels
|
Field of view
|
4.6°×3.7°
|
Laser ranging performance
|
Wavelength
|
1535nm
|
Maximum range
|
≥6km
|
Minimum range
|
≤50m
|
Ranging accuracy
|
2m
|
Positioning module performance
|
Positioning mode
|
Beidou navigation, GPS
|
Horizontal positioning accuracy (CEP)
|
5m
|
Elevation positioning accuracy (PE)
|
10m
|
Electronic compass performance
|
Magnetic azimuth measurement range
|
0~360°
|
Magnetic azimuth measurement accuracy
|
0.5°
|
Pitch angle measurement range
|
-90°~+90°
|
Pitch angle measurement accurac
|
0.4°
|
Tilt angle measurement range
|
-180°~+180°
|
Tilt angle measurement accuracy
|
0.5°
|
Laser indication performance
|
Wavelength
|
830nm
|
Safety level
|
5mW, Class IIIA
|
Display performance
|
Resolution
|
1280×1024
|
External interface
|
Aviation plug
|
DC/USB/PAL/RS232
|
Display
|
HDMI
|
Wireless transmission
|
WIFI
|
Complete machine performance
|
Storage
|
64G
|
Eyepiece diopter
|
-4~+4
|
Weight
|
2.1kg
|
Working time
|
≥8h
|
Dimensions
|
198*210*105mm
|
Working temperature
|
-40℃~+55℃
|
Storage temperature
|
-55℃~+70℃
|
Waterproof level
|
IP67
|
Working distance
|
|
Infrared mode
|
Visible light mode
|
Visible light mode
|
|
Discrimination
|
850m
|
3000m
|
Recognition
|
1700m
|
4500m
|
Detection
|
5000m
|
10070m
|
|
Discrimination
|
1200m
|
4000m
|
Recognition
|
2400m
|
6000m
|
Detection
|
6000m
|
12200m
|
