FZS3000 UAV Tracking Controller
The onick FZS3000 photoelectric tracking system integrates advanced infrared thermal imaging, high-definition visible light imaging, laser ranging, and AI target recognition technologies. It is designed for long-range, high-precision target detection, identification, tracking, and positioning, and is particularly optimized for handling low-speed, slow, and small targets, such as drones.
Product Details
Product Details
The onick FZS3000 photoelectric tracking system integrates advanced infrared thermal imaging, high-definition visible light imaging, laser ranging, and AI target recognition technologies. It is designed for long-range, high-precision target detection, identification, tracking, and positioning, and is particularly optimized for handling low-speed, slow, and small targets, such as drones. The system boasts excellent environmental adaptability, stable tracking performance, and comprehensive status management features, making it widely applicable in security surveillance, key point protection, border patrol, and industrial inspection.
Product Features
1. Multispectral Imaging: Supports infrared thermal imaging and 4K high-definition visible light imaging, meeting observation needs day and night, and in inclement weather.
2. Precise Ranging and Positioning: An integrated laser rangefinder and differential Beidou satellite navigation module provide precise ranging, positioning, and orientation.
3. Intelligent AI Recognition and Automatic Tracking: Built-in AI algorithms automatically identify targets such as multi-rotor drones, people, and vehicles, and achieve stable and smooth automatic tracking.
4. Comprehensive Status Management: Supports device self-diagnosis, fault notifications, status queries, parameter configuration, and online software upgrades for easy maintenance.
Application Areas:
Critical Infrastructure Protection: Monitoring drone no-fly zones at airports, nuclear power plants, and government sites. Border and Coastline Patrol: Day and night monitoring of intruding drones, vehicles, and personnel.
Public Safety and Emergency Response: Long-range target detection and location during large-scale event security and search and rescue operations.
Industrial Inspection: Remote inspection of power lines and oil pipelines.
Technical parameter
Functions: Supports infrared imaging, visible light imaging, laser ranging, target identification, target velocity measurement, target positioning, target attitude feedback (pitch, yaw, and distance), device self-diagnosis, fault notification, status query, parameter configuration, and online software upgrades.
Infrared Thermal Imager:
Detector: 640×512 uncooled focal plane array
Focal Length: 35mmF/1.2
Tracking range: 1500m or greater for drones 4m or greater
TV Camera:
Detector: 4K HD CMOS color camera
Focal Length: 25-100mm (dual field of view with simulated continuous zoom)
Tracking range: 2500m or greater for drones 4m or greater
Laser Rangefinder:
Operating Wavelength: 1535nm±5nm
Ranging Capability: ≥3km (for drones 4.0m or greater, visibility greater than 1000m) 5km)
Ranging Accuracy: ±1m
Differential Beidou Positioning and Orientation Module: Orientation Accuracy ≤0.2° RMS
Operating Range: Rotation range n × 360 degrees, Pitch range -5° to +75°
Tracking Speed: Maximum tracking speed ≥60°/s in azimuth, ≥60°/s in pitch
Speed Measurement and Target Positioning: Speed accuracy ≤2% or 2km/s (whichever is greater, provisional, RMS), Target Positioning Accuracy 5m (CEP)
Image Processing Module：
Tracking Capability: Minimum target size ≤6×6 pixels, target contrast ≤5%
Tracking error ≤2 pixels, Maximum tracking frequency ≥50Hz
AI Recognition Capability:
Target types include multirotor drones, humans, and vehicles; Detection range for multirotor drones up to 1.5m × 0.4m Range ≥ 1 km (using a multi-rotor as a typical target; specific targets can be calibrated upon request)
Interfaces
Video Interface: 8-way network video interface, H.264/H.265 encoding, RTSP streaming
Communication Interface: 8-way RS422 asynchronous serial port
Power Interface: Operating voltage: DC 24V ± 6V, average power consumption ≤ 25W, peak power consumption (heating) ≤ 60W

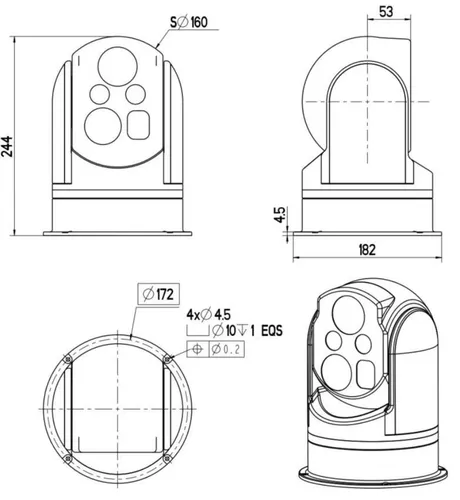

Mechanical Interface: The device's mechanical interface is shown in the figure below.
Physical Parameters
Dimensions: 182mm × 250mm
Weight: Approximately 5kg
Operating Temperature: -20°C to +60°C
Storage Temperature: 40°C to +60°C
Vibration and Shock Resistance: When packaged, meets transport requirements for road, rail, air, and ship transportation.
Ingress Protection: IP66
Appearance: White
