LSP350 Handheld camera laser speed meter
Onick Outdoor Optics integrates advanced laser speedometer technology and video image technology to launch the ultra-portable laser speedometer recording system - Onick LSP350 handheld camera laser speedometer, which is also an integrated handheld laser speedometer that can accurately measure the real-time speed of the car and measure the corresponding distance at the same time.
Product Details
Product Details

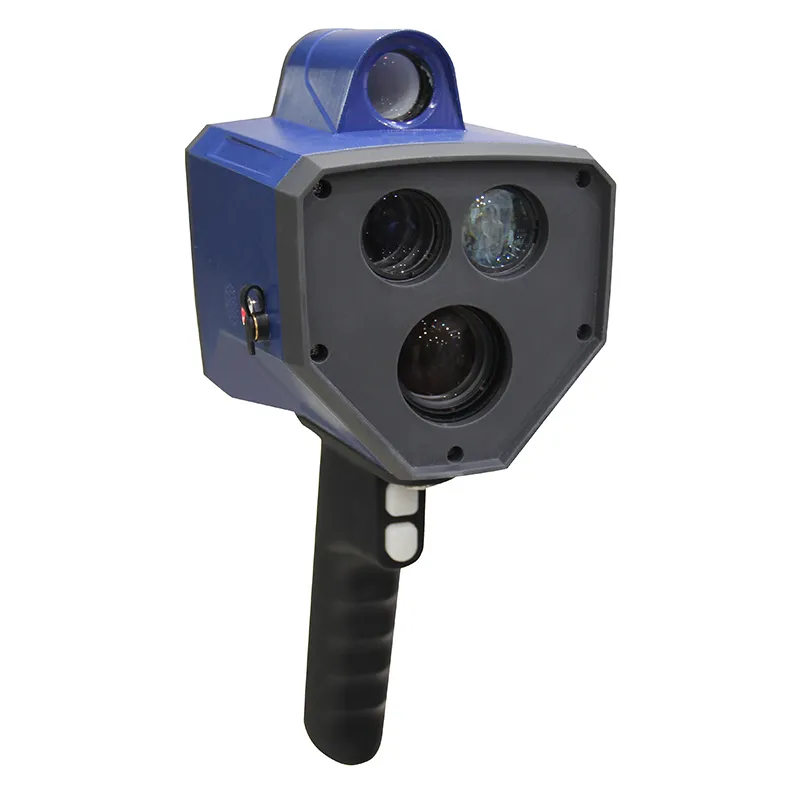

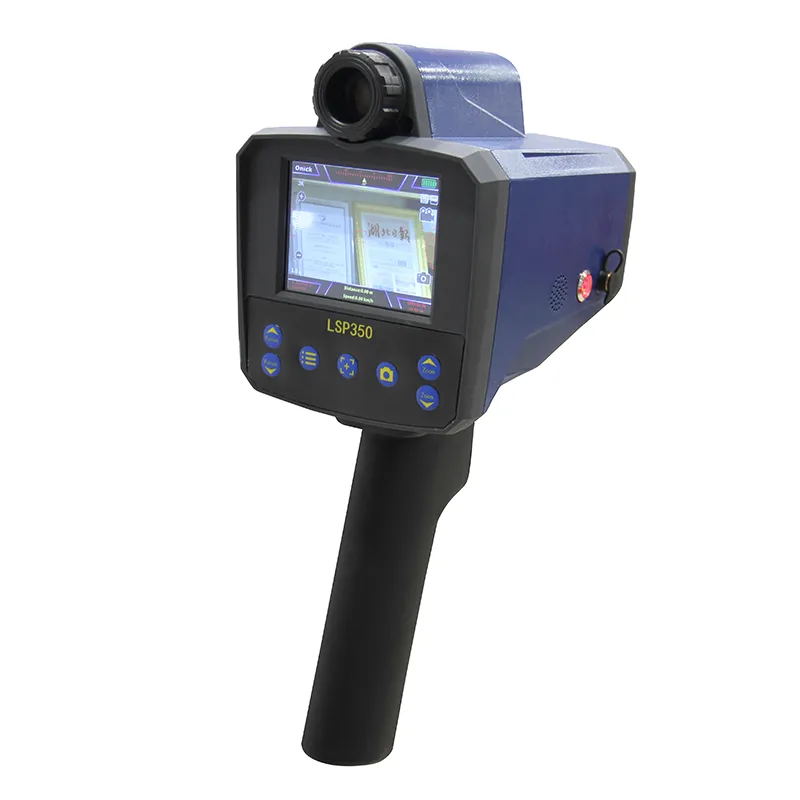

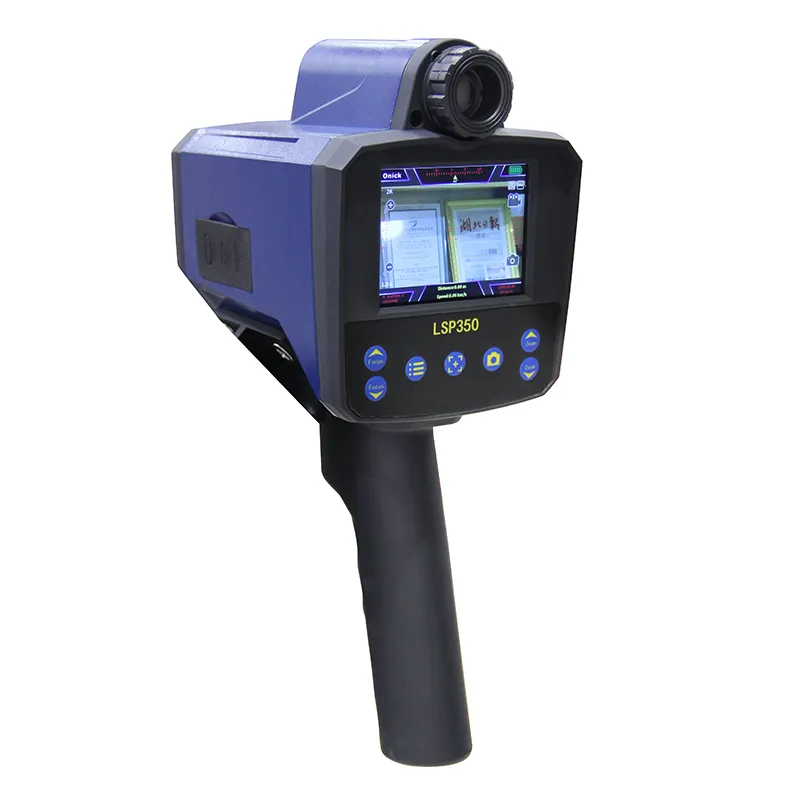

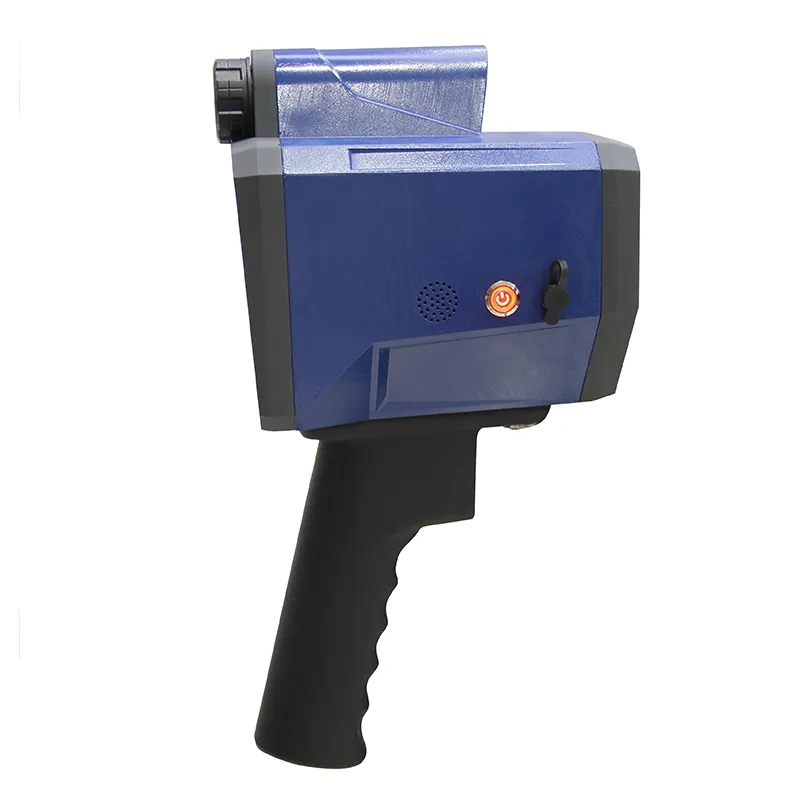

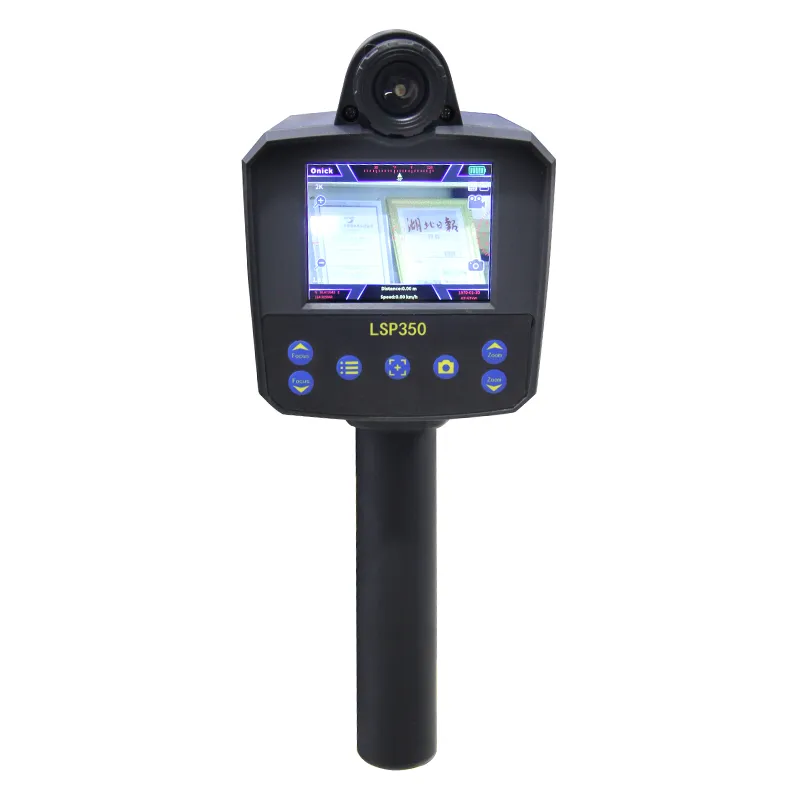

Onick LSP350 handheld camera laser speedometer
Onick Outdoor Optics integrates advanced laser speedometer technology and video image technology to launch the ultra-portable laser speedometer recording system - Onick LSP350 handheld camera laser speedometer, which is also an integrated handheld laser speedometer that can accurately measure the real-time speed of the car and measure the corresponding distance at the same time. The static picture capture and video recording function of the speeding vehicle can record the dynamic image of the speeding vehicle completely, and it is light and easy to carry.
Product Features:
1. 3.5-inch color touchscreen display for clear and convenient readings
2. Measurement range up to 350 km/h with 1 km/h accuracy
3. Equipped with GPS functionality, voice prompts, and user-friendly design
4. Maximum measurement distance of 1500 meters, suitable for complex road conditions
5. 80x ultra-high magnification for precise and clear target measurement
6. Built-in electronic compass displays azimuth and roll angle
7. Photos display time, coordinates, location, and officer name
Application areas:
Traffic speed measurement, road factory area, highway, field training, sports competition, military and police technology, etc.
| Product Model | onick LSP350 | |
| Performance | Magnification | 1-20x optical, 1-4x electronic; total 1-80x |
| Optimal focus distance | 3-200m | |
| Optimal operating range | 50-150m | |
| Speed measurement accuracy | ±0.5km/h | |
| Speed measurement range | 0km/h-350km/h | |
| Distance measurement accuracy | ±10cm | |
| Speed display resolution | 0.01km/h | |
| Distance display resolution | 0.01m | |
| Minimum speed measurement distance | 10m | |
| Maximum speed measurement distance | 1,500m | |
| Speed measurement time | ≤0.8s | |
| Speed measurement unit | km/h (customizable) | |
| Distance measurement unit | m (customizable) | |
| Laser wavelength | 905nm | |
| Laser beam divergence | 2.0mrad | |
| Eye safety | FDA Class 1 (CFR21) | |
| Tripod mount | Supports (Anch 1/4-20 universal camera interface) | |
| Structure | Weight | 1.50kg |
| Dimensions | 155*120*151mm | |
| IP rating | IP65 waterproof/dustproof | |
| Operating temperature | 0-+80°C (customized version -45°C-+85°C) | |
| Charging temperature | 0-+45°C (customized version -45°C-+45°C) | |
| Storage temperature | -20-+60°C (-4-140°F) | |
| Hardware | Processor | Rockchip RK3568-J |
| Snapshot data storage | Removable TF card, supports up to 256GB | |
| TF file format | MS-DOS (FAT16, FAT32) | |
| Display | 3.5-inch (8.9cm), 640x480 pixels, RGB full-color LCD, capacitive touchscreen | |
| Camera | Sony 800w HD industrial CCD camera | |
| Camera lens | 1-100mm motorized zoom | |
| GPS | Receive channel | 92 |
| Maximum update rate | 1Hz | |
| Maximum altitude | 80,000m | |
| Maximum speed | 500m/s | |
